2525x2, TL Bushing

2525x2, 2525X2, TL2525 X 2.00, 20352933

2525x2

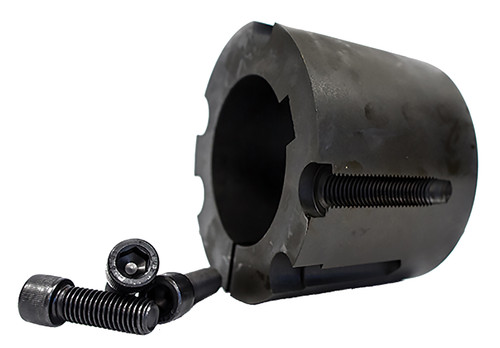

2525x2, TL Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries 2525x2 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number	2525x2
Material	Steel
Finish	Black Oxide
Bore Type	Finished Bore
Bore (in)	2.000
Bore Description	2 Inch Finished Bore
Min. Bore (in)	0.75
Unit System	Inch
Bushing	2525
A (in)	3.375
B (in)	2.500
C (in)	4.500
D (in)	3.250
Torque Capacity (lb/in)	11,300
Bolt Circle (in)	3.250
MOQ	1
Weight (lb)	2.90
Part Number Cross Reference	2525 2., 2525 X 2, 2525X2, TL2525 X 2.00, 20352933, 2525 X 2-KW, TL25252, 2525X2, 2525X2, 2525X2, 2525X2, 2525X2, 2525x2, 119324, 2525x2
Set Screw Quantity	2

Related Products

Comparable to: 2525 2., 2525 X 2, 2525X2, TL2525 X 2.00, 20352933, 2525 X 2-KW, TL25252, 2525X2, 2525X2, 2525X2, 2525X2, 2525X2, 2525x2, 119324, 2525x2
