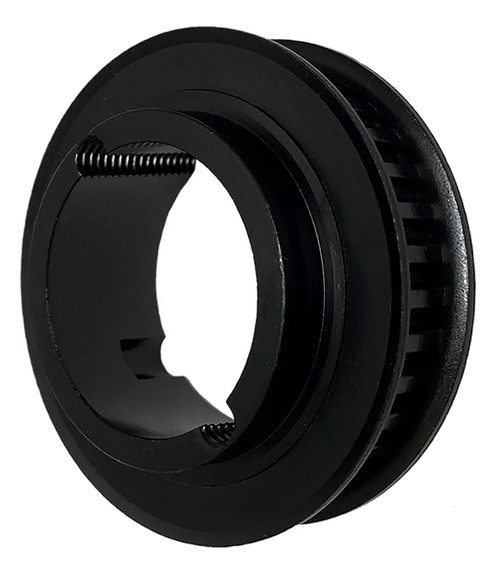

TL40XL037, Timing Pulley

TL40XL037, 78816040

TL40XL037

TL40XL037, 78816040 Line Drawing

Click to Enlarge

TL40XL037, Timing Pulley, Steel, Black Oxide,

Learn more about TL40XL037 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number TL40XL037
Teeth 40
Tooth Style XL
For Belt Width (in) 0.3750
Type 8F
Material Steel
Finish Black Oxide
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.546
Outside Diameter (in) 2.526
Unit System Inch
Bushing 1108
P.D. (mm) 65.00
O.D. (mm) 64.20
MOQ 1
Weight (lb) 0.65
Part Number Cross Reference TL40XL037, TL40XL037-1108 DYNA-SYNC SPKT, P40XL037-1108, TL40XL037, 113023, TL40XL037
