QD36-14M-115, Timing Pulley

QD36-14M-115 - Cast Iron Powerhouse®HTD® Pulleys

QD36-14M-115

Click to Enlarge

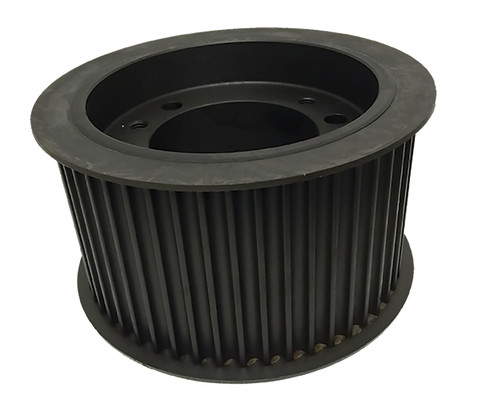

QD36-14M-115, Timing Pulley, Cast Iron, Black Oxide,

Learn more about QD36-14M-115 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD36-14M-115
Teeth 36
Tooth Style HTD14mm
For Belt Width (mm) 115.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.206
Flange Diameter (in) 6.810
Face Width (in) 5.250
Overall Length (in) 5.250
Min. Bore (in) 0.5
Unit System Metric
Bushing SF
P.D. (mm) 160.00
O.D. (mm) 157.60
MOQ 1
Weight (lb) 18.00
Part Number Cross Reference 14M36QD115.SF, P36-14M-115-FL, 20182299, P36-14M-115-SF HTD SPKT, P3614M115, P36-14M-115-SF, P36-14M-115-FL, P36-14M-115, P36-14M-115-SF, QD36-14M-115, 110860, QD36-14M-115

Comparable to: 14M36QD115.SF, P36-14M-115-FL, 20182299, P36-14M-115-SF HTD SPKT, P3614M115, P36-14M-115-SF, P36-14M-115-FL, P36-14M-115, P36-14M-115-SF, QD36-14M-115, 110860, QD36-14M-115
