QD28-8M-30, Timing Pulley

QD28-8M-30

Click to Enlarge

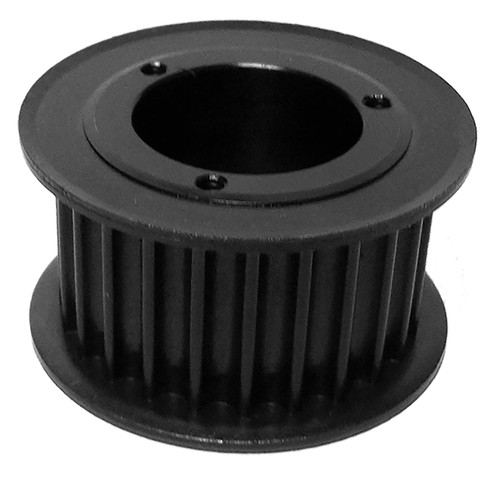

QD28-8M-30, Timing Pulley, Steel, Black Oxide,

Learn more about QD28-8M-30 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	QD28-8M-30
Teeth	28
Tooth Style	HTD8mm
For Belt Width (mm)	30.00
Type	E1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	QD
Bore Description	Bored for H Bushing
Pitch Diameter (in)	2.807
Outside Diameter (in)	2.755
Flange Diameter (in)	3.150
Face Width (in)	1.500
Overall Length (in)	1.500
Min. Bore (in)	0.375
Pulley Belt Width (in)	1.250
Unit System	Metric
Bushing	H
P.D. (mm)	71.00
O.D. (mm)	70.00
MOQ	1
Weight (lb)	1.55
Part Number Cross Reference	P288M30-H, 8M28QD30.H, B288M30H, P28-8M-30-QT, 20182257, P28-8M-30-QT HTD SPKT, P288M30, P28-8M-30-HQ, P28-8M-30-QT, P28-8M-30, P288M30H, 6497K714, P28-8M-30-L, QD28-8M-30, 110723, QD28-8M-30
