QD144-14M-55, Timing Pulley

QD144-14M-55 - Cast Iron Powerhouse®HTD® Pulleys

QD144-14M-55

Click to Enlarge

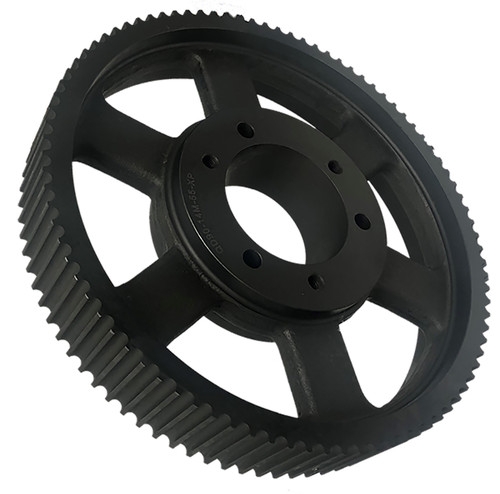

QD144-14M-55, Timing Pulley, Cast Iron, Black Oxide

Learn more about QD144-14M-55 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number QD144-14M-55
Teeth 144
Tooth Style HTD14mm
For Belt Width (mm) 55.00
Type D-3
Material Cast Iron
Finish Black Oxide
Bore Type QD
Bore Description Bored for F Bushing
Pitch Diameter (in) 25.264
Outside Diameter (in) 25.154
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 1
Unit System Metric
Bushing F
P.D. (mm) 642.00
O.D. (mm) 638.90
MOQ 1
Weight (lb) 106.00
Part Number Cross Reference 14M144QD55.F, P144-14M-55-F, 20182201, P144-14M-55-F HTD SPKT, P14414M55, P144-14M-55-F, P144-14M-55-F, P144-14M-55, P144-14M-55-F, QD144-14M-55, 110824, QD144-14M-55

Comparable to: 14M144QD55.F, P144-14M-55-F, 20182201, P144-14M-55-F HTD SPKT, P14414M55, P144-14M-55-F, P144-14M-55-F, P144-14M-55, P144-14M-55-F, QD144-14M-55, 110824, QD144-14M-55
