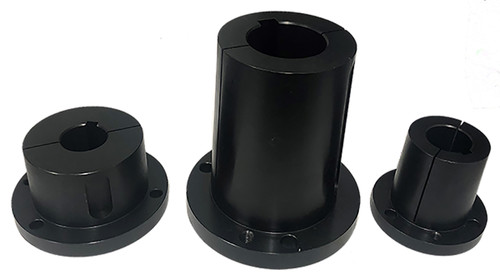

P1x1, Split Taper Bushing

P1x1

P1x1

P1x1, Split Taper Bushing, C45 Steel, Black Oxide,

B&B Manufacturing carries P1x1 Bushings in a large variety of bore sizes from stock.

Specifications

Product Number P1x1
Material Steel
Finish Black Oxide
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
D 1.938
d 1.856
H (in) 3.000
L (in) 1.938
T (in) 1.531
U (in) 0.406
V (in) 2.438
W (in) 0.375
X (in) 1.313
Y (in) 0.219
Torque Capacity (lb/in) 192
Number & Screw Size 3 - (5/16 X 1)
MOQ 1
Weight (lb) 0.80
Part Number Cross Reference P1.1, P1 1, P1 X 1-KW BUSHING, P1-1, 36883528, P1X1, P1x1, 471533, P1x1
Cap Screw Quantity 3
