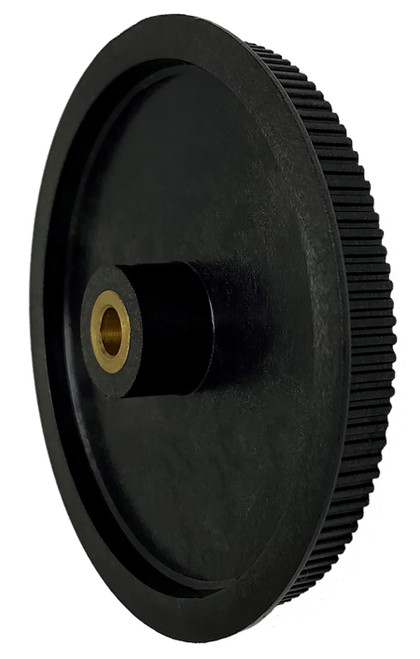

90MP025-SFB3, Timing Pulley

90MP025-SFB3

90MP025-SFB3

90MP025-SFB3, Timing Pulley

B&B Manufacturing carries 90MP025-SFB3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	90MP025-SFB3
Teeth	90
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	SFB
Material	Polycarbonate
Flange Material	Polycarbonate
Bore (in)	0.250
Bore Description	1/4 Inch Bore
Pitch Diameter (in)	2.292
Outside Diameter (in)	2.272
Flange Diameter (in)	2.460
Face Width (in)	0.433
Overall Length (in)	0.688
Hub Diameter (in)	0.688
Unit System	Inch
P.D. (mm)	58.00
O.D. (mm)	57.70
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6Z16-090SF2508, 90MP025-SFB3, 90MP025-SFB3
Set Screw Quantity	1
Insert Material	Brass

Comparable to: A 6Z16-090SF2508, 90MP025-SFB3, 90MP025-SFB3
