90MP025-DFM4, Timing Pulley

90MP025-DFM4

90MP025-DFM4

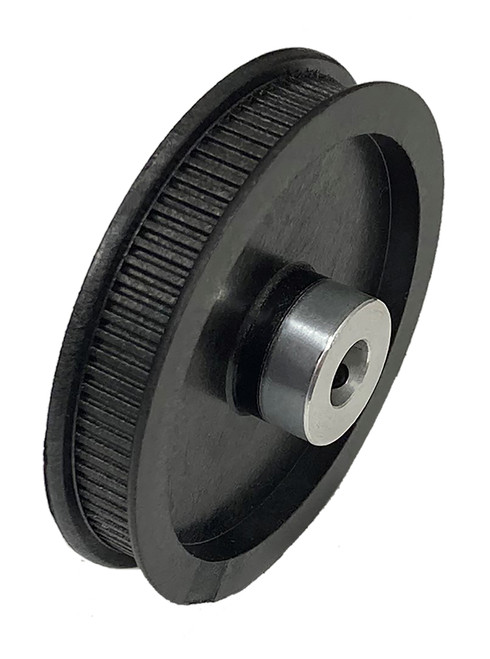

90MP025-DFM4, Timing Pulley, Plastic

B&B Manufacturing carries 90MP025-DFM4 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 90MP025-DFM4
Teeth 90
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFM
Material Polycarbonate
Flange Material Polycarbonate
Bore Type Minimum Plain Bore
Bore (in) 0.313
Bore Description 5/16 Inch Bore
Pitch Diameter (in) 2.292
Outside Diameter (in) 2.272
Flange Diameter (in) 2.460
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Inch
P.D. (mm) 58.00
O.D. (mm) 57.70
MOQ 1
Weight (lb) 0.06
Part Number Cross Reference A 6Z16-090DF2510, 90MP025-DFM4, 90MP025-DFM4, 90MP025-DFM4
Set Screw Quantity 1
Insert Material Aluminum
