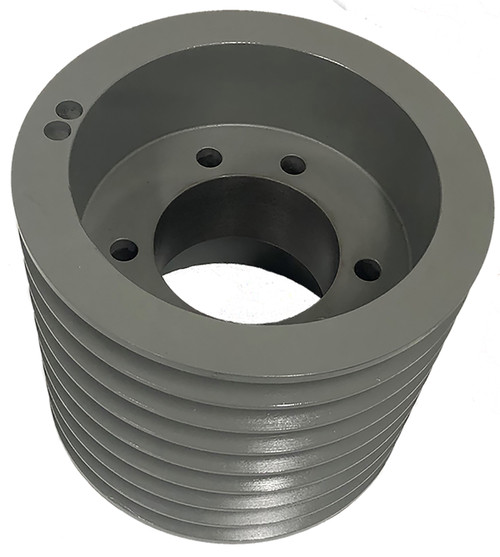

8C300J, V-Belt Pulley

8C300J

8C300J, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 8C300J to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	8C300J
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for J Bushing
Outside Diameter (in)	30.400
Face Width (in)	8.250
Min. Bore (in)	1.5
Unit System	Inch
Bushing	J
MOQ	1
Sheave Type	C
Weight (lb)	230.00
Part Number Cross Reference	QD8C30.0, 8C300J, 30.0-8C-J PULLEY, 20179228, 8C300-J SHEAVE, 3008C, 8C300, 8C300J, 455909, 8C300J
Datum "C"	30.0
Grooves	8
