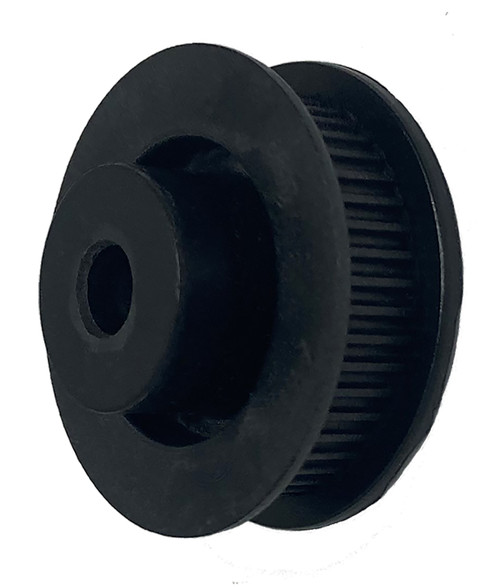

72-2P06MDFP8, Timing Pulley

72-2P06MDFP8

72-2P06MDFP8

72-2P06MDFP8, Timing Pulley

B&B Manufacturing carries 72-2P06MDFP8 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	72-2P06MDFP8
Teeth	72
Tooth Style	2P
For Belt Width (mm)	6.00
Type	DFP
Material	Polycarbonate
Flange Material	Polycarbonate
Bore Description	8 mm Bore
Bore (mm)	8.00
Pitch Diameter (in)	1.805
Outside Diameter (in)	1.785
Flange Diameter (in)	2.000
Face Width (in)	0.433
Overall Length (in)	0.688
Hub Diameter (in)	0.688
Unit System	Metric
P.D. (mm)	46.00
O.D. (mm)	45.30
Flange Diameter (mm)	50.80
Overall Length (mm)	17.48
MOQ	1
Weight (lb)	0.10
Part Number Cross Reference	A 6L51M072DF0608, 72-2P06MDFP8, 72-2P06MDFP8
Set Screw Quantity	1

Comparable to: A 6L51M072DF0608, 72-2P06MDFP8, 72-2P06MDFP8
