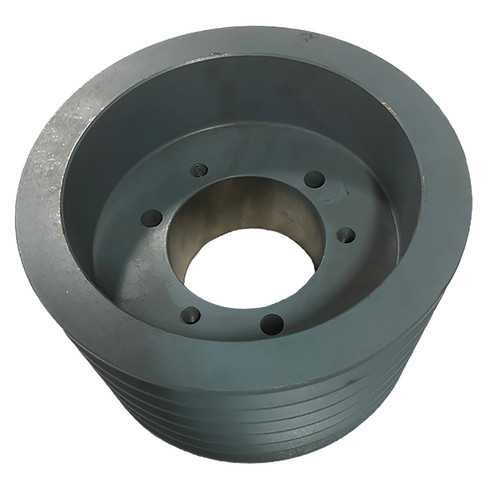

6C100F, V-Belt Pulley

6C100F

6C100F

6C100F, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 6C100F to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	6C100F
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for F Bushing
Outside Diameter (in)	10.400
Face Width (in)	6.250
Min. Bore (in)	1
Unit System	Inch
Bushing	F
MOQ	1
Sheave Type	C
Weight (lb)	59.00
Part Number Cross Reference	QD6C10.0, 6C100F, 10.0-6C-F, 20178916, 6C100-F SHEAVE, 1006C, 6C100, 6C100F, 455880, 6C100F
Datum "C"	10.0
Grooves	6

Related Products

Comparable to: QD6C10.0, 6C100F, 10.0-6C-F, 20178916, 6C100-F SHEAVE, 1006C, 6C100, 6C100F, 455880, 6C100F
