60XL037M6WA12, Timing Pulley

60XL037M6WA12 - Aluminum Metric Pulleys

60XL037M6WA12

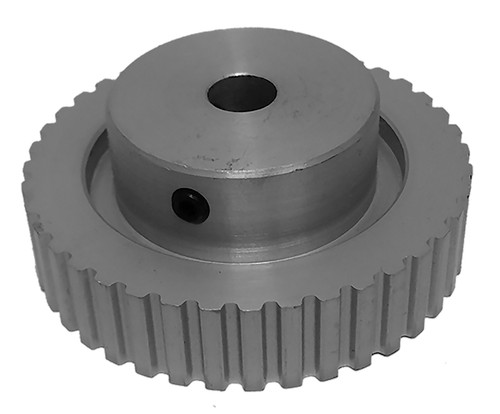

Click to Enlarge

60XL037M6WA12, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60XL037M6WA12 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60XL037M6WA12
Teeth 60
Tooth Style XL
For Belt Width (in) 0.3750
Type 6W
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 12 mm Finished Bore
Bore (mm) 12.00
Pitch Diameter (in) 3.820
Outside Diameter (in) 3.800
Pulley Belt Width (mm) 9.50
Unit System Metric
P.D. (mm) 97.00
O.D. (mm) 96.50
Face Width (mm) 25.40
Overall Length (mm) 9.50
Hub Diameter (mm) 38.00
MOQ 1
Weight (lb) 0.53
Part Number Cross Reference A 6A3M60NF09512, A6A3M60NF09512, 60XL037M6WA12, 60XL037M6WA12
Set Screw Quantity 2
