5C120E, V-Belt Pulley

5C120E

5C120E

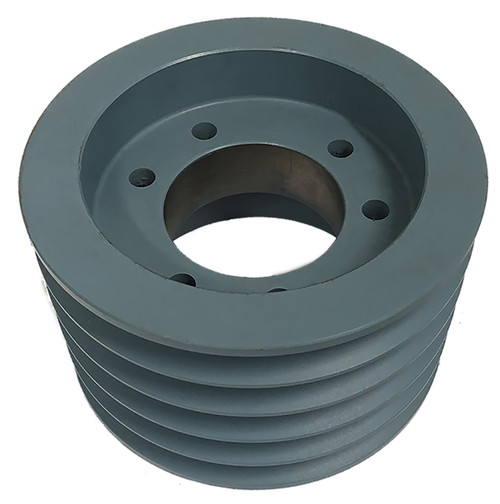

5C120E, V-Belt Pulley, Cast Iron

B&B Manufacturing carries 5C120E to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	5C120E
Type	A-2
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Outside Diameter (in)	12.400
Face Width (in)	5.250
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
MOQ	1
Sheave Type	C
Weight (lb)	53.00
Part Number Cross Reference	QD5C12.0, 5C120E, 12.0-5C-E, 5C120-E SHEAVE, 1205C, 5C120, 5C120E, 455862, 5C120E
Datum "C"	12.0
Grooves	5

Related Products

Comparable to: QD5C12.0, 5C120E, 12.0-5C-E, 5C120-E SHEAVE, 1205C, 5C120, 5C120E, 455862, 5C120E
