56-5P09M6A12, Timing Pulley

56-5P09M6A12

56-5P09M6A12

56-5P09M6A12

Line Drawing

Click to Enlarge

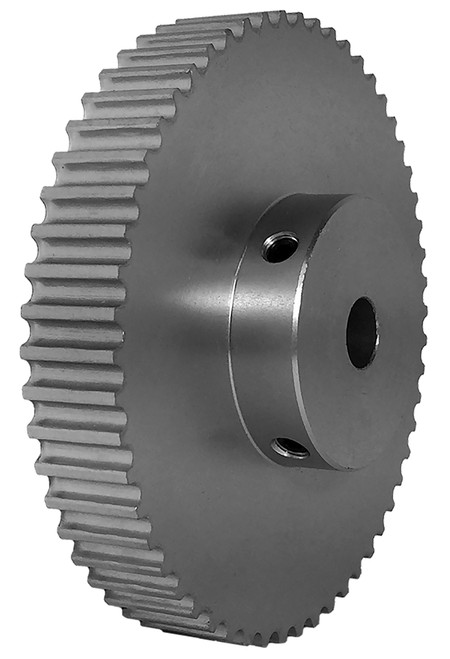

56-5P09M6A12, Timing Pulley, Aluminum, Clear Anodized

B&B Manufacturing carries 56-5P09M6A12 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	56-5P09M6A12
Teeth	56
Tooth Style	5P
Type	6
Bore Type	Finished Bore
Bore Description	12 mm Bore
Pitch Diameter (in)	3.509
Outside Diameter (in)	3.464
Face Width (in)	0.546
Overall Length (in)	0.937
Hub Diameter (in)	1.500
P.D. (mm)	89.00
O.D. (mm)	88.00
MOQ	1
Part Number Cross Reference	56-5P09M6A12

Comparable to: 56-5P09M6A12

Documentation

For custom parts click here

REACH Certification

RoHS Certification
