56-2P06-6FA3, Timing Pulley

56-2P06-6FA3 - Aluminum Powerhouse® Pulleys

56-2P06-6FA3

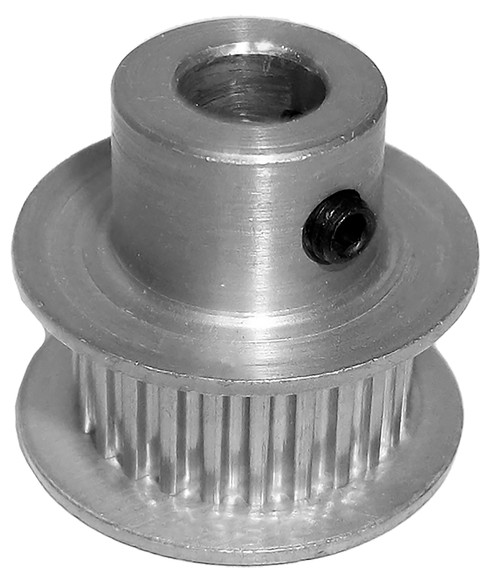

Click to Enlarge

56-2P06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 56-2P06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-2P06-6FA3
Teeth 56
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.404
Outside Diameter (in) 1.384
Flange Diameter (in) 1.575
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 1.030
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
P.D. (mm) 36.00
O.D. (mm) 35.10
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference A 6A51-056DF0608, A6A51-056DF0608, 2MR-56S-06, 2MR-56S-06, TP2A3W5-56, 56-2GT06-1A X 1/4, 56-2P06-6FA3, 56-2P06-6FA3
Set Screw Quantity 2

Comparable to: A 6A51-056DF0608, A6A51-056DF0608, 2MR-56S-06, 2MR-56S-06, TP2A3W5-56, 56-2GT06-1A X 1/4, 56-2P06-6FA3, 56-2P06-6FA3
