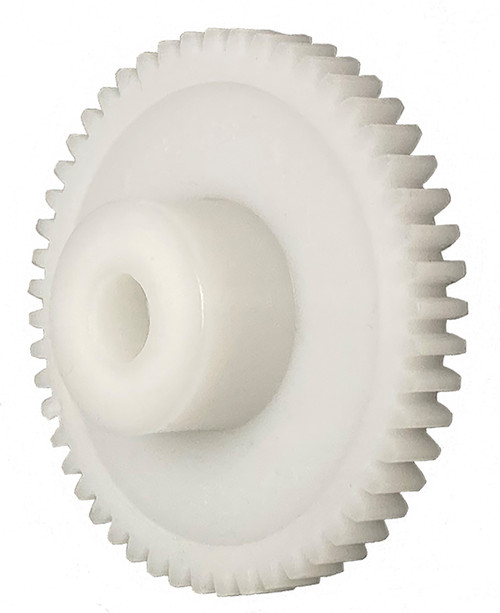

53T32P20-6P4, Spur Gear

53T32P20-6P4

53T32P20-6P4

53T32P20-6P4, Gear, Plastic

B&B Manufacturing carries 53T32P20-6P4 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	53T32P20-6P4
Teeth	53
Tooth Style	32
Material	Acetal
Bore (in)	0.313
Bore Description	5/16 Inch Bore
Pitch Diameter (in)	1.656
Outside Diameter (in)	1.719
Face Width (in)	0.188
Overall Length (in)	0.500
Hub Diameter (in)	0.672
Unit System	Inch
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	53T32P20-6P4, 53T32P20-6P4
Pressure Angle	20.0
Diametral Pitch	32
