50MP025-DFM3, Timing Pulley

50MP025-DFM3

50MP025-DFM3

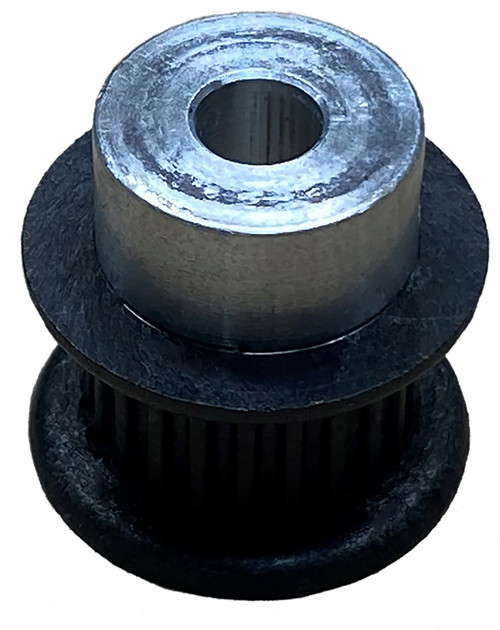

50MP025-DFM3, Timing Pulley, Plastic

B&B Manufacturing carries 50MP025-DFM3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 50MP025-DFM3
Teeth 50
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFM
Material Polycarbonate
Flange Material Polycarbonate
Bore Type Minimum Plain Bore
Bore (in) 0.250
Bore Description 1/4 Inch Bore
Pitch Diameter (in) 1.273
Outside Diameter (in) 1.253
Flange Diameter (in) 1.440
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Inch
P.D. (mm) 32.00
O.D. (mm) 31.80
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6Z16-050DF2506, 50MP025-DFM3, 50MP025-DFM3, 50MP025-DFM3
Set Screw Quantity 1
Insert Material Aluminum
