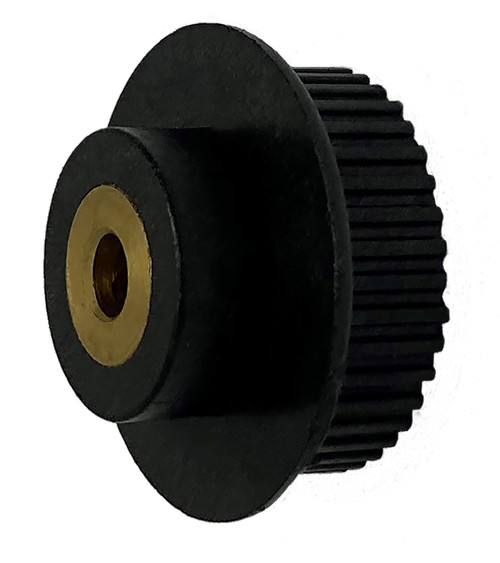

48MP025MSFB6, Timing Pulley

48MP025MSFB6

48MP025MSFB6

48MP025MSFB6, Timing Pulley

B&B Manufacturing carries 48MP025MSFB6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 48MP025MSFB6
Teeth 48
Tooth Style MXL
For Belt Width (in) 0.2500
Type SFB
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.222
Outside Diameter (in) 1.202
Flange Diameter (in) 1.390
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Metric
P.D. (mm) 31.00
O.D. (mm) 30.50
Flange Diameter (mm) 35.31
Overall Length (mm) 17.46
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6Z16M048SF6006, 48MP025MSFB6, 48MP025MSFB6
Set Screw Quantity 1
Insert Material Brass
