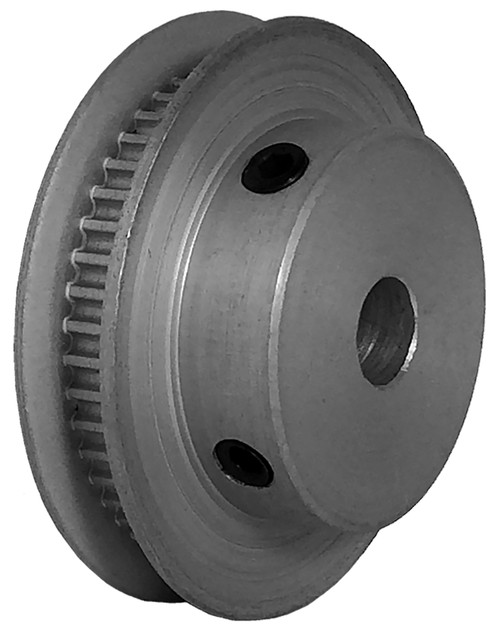

48-2P03-6FA3, Timing Pulley

48-2P03-6FA3

Click to Enlarge

48-2P03-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 48-2P03-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	48-2P03-6FA3
Teeth	48
Tooth Style	2P
For Belt Width (mm)	3.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.203
Outside Diameter (in)	1.183
Flange Diameter (in)	1.420
Face Width (in)	0.275
Overall Length (in)	0.531
Hub Diameter (in)	0.936
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.160
Unit System	Inch
P.D. (mm)	31.00
O.D. (mm)	30.00
MOQ	1
Weight (lb)	0.05
Part Number Cross Reference	A 6A51-048DF0308, A6A51-048DF0308, 48-2GT06-1A X 1/4, 48-2P03-6FA3, 48-2P03-6FA3
Set Screw Quantity	2
