45-5P25-6FS6, Timing Pulley

45-5P25-6FS6

Click to Enlarge

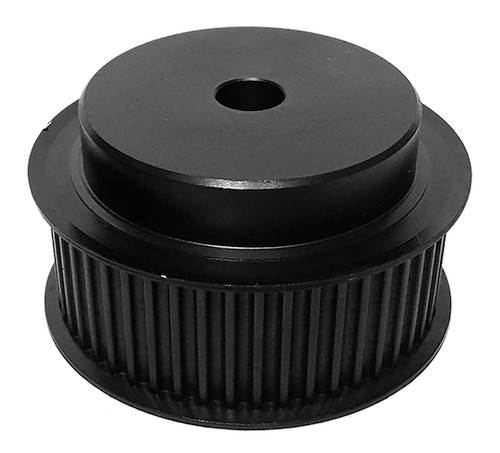

45-5P25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 45-5P25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	45-5P25-6FS6
Teeth	45
Tooth Style	5P
For Belt Width (mm)	25.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.820
Outside Diameter (in)	2.775
Flange Diameter (in)	3.094
Face Width (in)	1.280
Overall Length (in)	1.780
Hub Diameter (in)	2.340
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.100
Unit System	Inch
P.D. (mm)	72.00
O.D. (mm)	70.50
MOQ	1
Weight (lb)	2.66
Part Number Cross Reference	P45-5MGT-25-MPB, 5MR-45S-25, 45-5P25-6FS6, 45-5P25-6FS6
