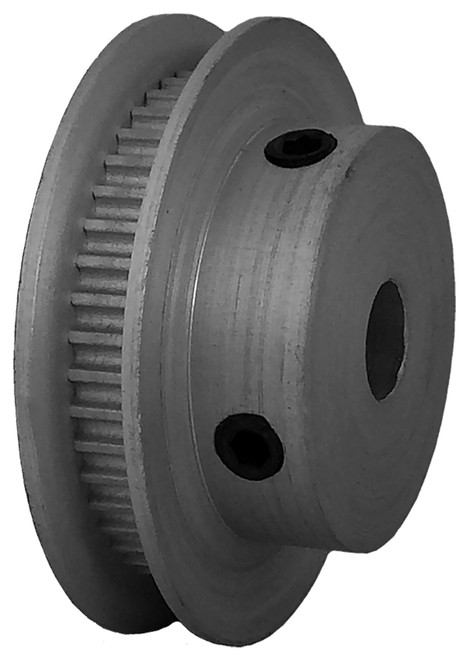

45-2P03M6FA6, Timing Pulley

45-2P03M6FA6

45-2P03M6FA6

45-2P03M6FA6 Line Drawing

Click to Enlarge

45-2P03M6FA6, Timing Pulley

45-2P03M6FA6, Timing Pulley

Specifications

Product Number 45-2P03M6FA6
Teeth 45
Tooth Style 2P
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6.000
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.108
Flange Diameter (in) 1.340
Overall Length (in) 0.531
Pulley Belt Width (mm) 4.10
Unit System Metric
Belt Width (mm) 4.10
P.D. (mm) 28.60
O.D. (mm) 28.10
Flange Diameter (mm) 34.00
Face Width (mm) 6.60
Overall Length (mm) 13.50
Hub Diameter (mm) 22.90
MOQ 1
Part Number Cross Reference 6A51M045DF0306, 45-2P03M6FA6, 45-2P03M6FA6
Set Screw Quantity 2
