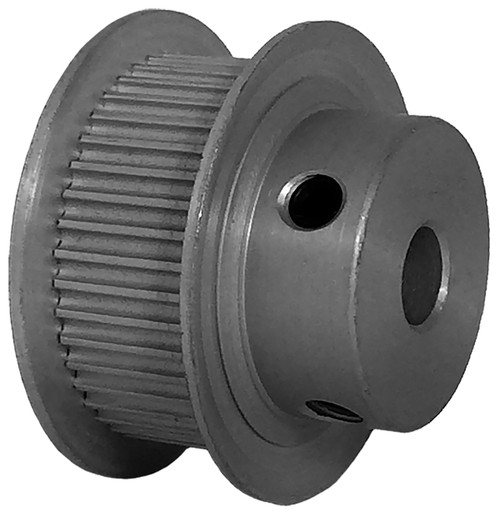

42-2P09M6FA6,

42-2P09M6FA6

42-2P09M6FA6

42-2P09M6FA6

Line Drawing

Click to Enlarge

42-2P09M6FA6,

B&B Manufacturing carries 42-2P09M6FA6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	42-2P09M6FA6
Teeth	42
Tooth Style	2P
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	6.000
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	1.053
Outside Diameter (in)	1.033
Flange Diameter (in)	1.260
Face Width (in)	0.530
Overall Length (in)	0.843
Hub Diameter (in)	0.806
Pulley Belt Width (in)	0.410
Pulley Belt Width (mm)	10.40
Unit System	Metric
Belt Width (mm)	10.40
P.D. (mm)	26.70
O.D. (mm)	26.20
Flange Diameter (mm)	32.00
Face Width (mm)	13.10
Overall Length (mm)	21.40
Hub Diameter (mm)	20.50
MOQ	1
Part Number Cross Reference	6A51M042DF0906, 42-2P09M6FA6, 42-2P09M6FA6
Set Screw Quantity	2

Comparable to: 6A51M042DF0906, 42-2P09M6FA6, 42-2P09M6FA6
