40T24P20-6P4, Spur Gear

40T24P20-6P4

40T24P20-6P4

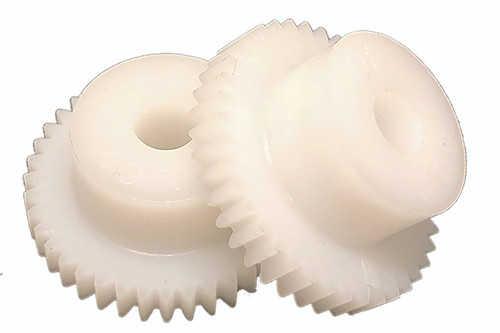

40T24P20-6P4, Gear, Plastic

B&B Manufacturing carries 40T24P20-6P4 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	40T24P20-6P4
Teeth	40
Tooth Style	24
Material	Acetal
Bore (in)	0.313
Bore Description	5/16 Inch Bore
Pitch Diameter (in)	1.666
Outside Diameter (in)	1.750
Face Width (in)	0.250
Overall Length (in)	0.563
Hub Diameter (in)	0.672
Unit System	Inch
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	40T24P20-6P4, 40T24P20-6P4
Pressure Angle	20.0
Diametral Pitch	24
