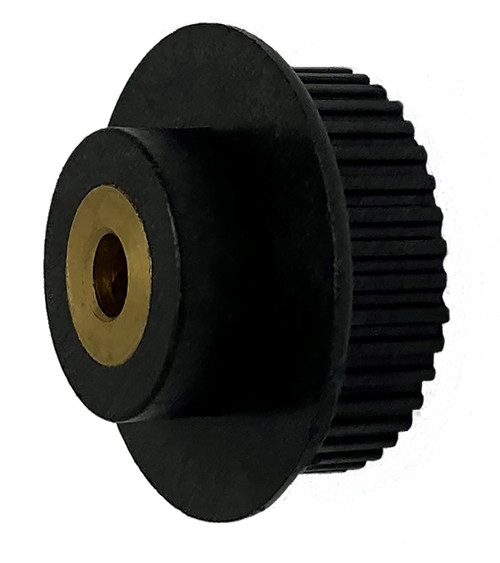

40MP025MSFB8, Timing Pulley

40MP025MSFB8

40MP025MSFB8

40MP025MSFB8, Timing Pulley

B&B Manufacturing carries 40MP025MSFB8 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 40MP025MSFB8
Teeth 40
Tooth Style MXL
For Belt Width (in) 0.2500
Type SFB
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 8 mm Bore
Bore (mm) 8.00
Pitch Diameter (in) 1.019
Outside Diameter (in) 0.999
Flange Diameter (in) 1.190
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Metric
P.D. (mm) 26.00
O.D. (mm) 25.40
Flange Diameter (mm) 30.23
Overall Length (mm) 17.46
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 40MP025MSFB8, 40MP025MSFB8
Set Screw Quantity 1
Insert Material Brass
