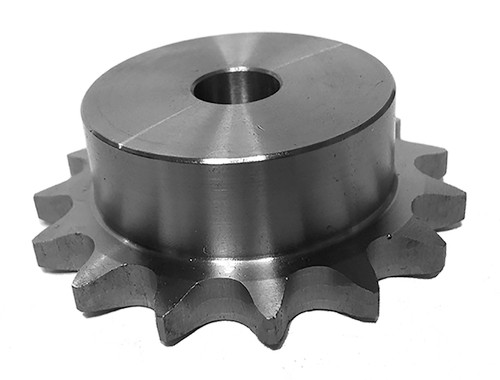

40B54SS, Roller Chain Sprocket

40B54SS

40B54SS

40B54SS, Roller Chain Sprocket

B&B Manufacturing carries 40B54SS to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	40B54SS
Teeth	54
Tooth Style	40
Type	B
Material	Stainless Steel
Bore Type	Minimum Plain Bore
Bore (in)	2.375
Bore Description	2-3/8 Inch Minimum Plain Bore
Outside Diameter (in)	8.884
Face Width (in)	1.125
Overall Length (in)	0.750
Hub Diameter (in)	3.500
Unit System	Inch
MOQ	1
Part Number Cross Reference	40B54SS, 40B54SS, 40B54SS

Comparable to: 40B54SS, 40B54SS, 40B54SS
