40-8MX21-2012SS, Timing Pulley

40-8MX21-2012SS

Click to Enlarge

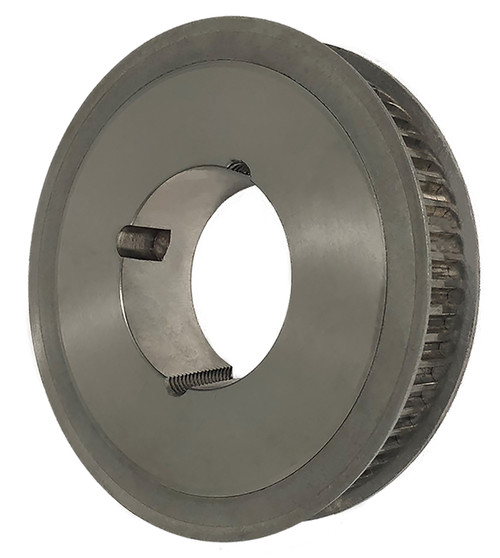

40-8MX21-2012SS, Timing Pulley, Stainless Steel

B&B Manufacturing carries 40-8MX21-2012ss to accommodate the different industries we serve. Contact us today for a free quote!

Product Number	40-8MX21-2012SS
Teeth	40
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Stainless Steel
Flange Material	Stainless Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	4.010
Outside Diameter (in)	3.947
Flange Diameter (in)	4.331
Face Width (in)	1.250
Overall Length (in)	1.250
Min. Bore (in)	0.5
Unit System	Inch
Bushing	2012
P.D. (mm)	102.00
O.D. (mm)	100.30
MOQ	1
Weight (lb)	2.04
Part Number Cross Reference	SS 8MX-40S-21 2012, SS 40G-8M-21-2012 STAINLESS STEEL QTE, 21071717, 40-8MX21-2012SS, 40-8MX21-2012SS
