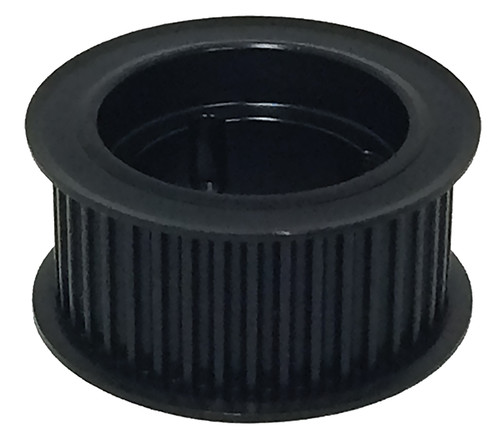

40-5P25-1108, Timing Pulley

40-5P25-1108

Click to Enlarge

40-5P25-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 40-5P25-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	40-5P25-1108
Teeth	40
Tooth Style	5P
For Belt Width (mm)	25.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1108 Bushing
Pitch Diameter (in)	2.506
Outside Diameter (in)	2.461
Flange Diameter (in)	2.750
Face Width (in)	1.290
Overall Length (in)	1.290
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.100
Unit System	Inch
Bushing	1108
P.D. (mm)	64.00
O.D. (mm)	62.50
MOQ	1
Weight (lb)	0.97
Part Number Cross Reference	P40-5MGT-25, P40-5M-25-1108 HT250 SPKT, 40-5P25-1108, 112485, 40-5P25-1108
