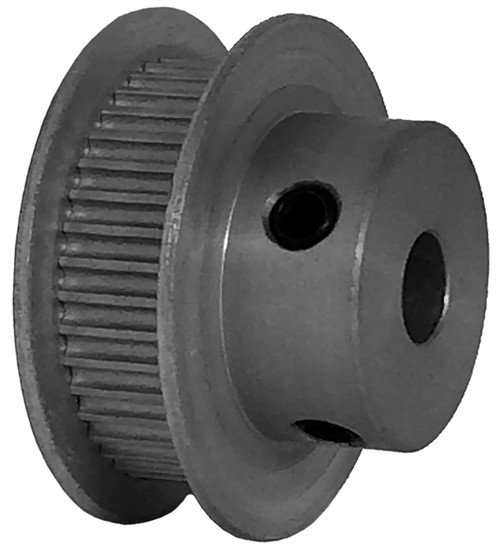

40-2P06M6FA6, Timing Pulley

40-2P06M6FA6

40-2P06M6FA6

40-2P06M6FA6 Line Drawing

Click to Enlarge

40-2P06M6FA6, Timing Pulley

B&B Manufacturing carries 40-2P06M6FA6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 40-2P06M6FA6
Teeth 40
Tooth Style 2P
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6.000
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.003
Outside Diameter (in) 0.983
Flange Diameter (in) 1.210
Face Width (in) 0.389
Overall Length (in) 0.719
Hub Diameter (in) 0.754
Pulley Belt Width (in) 0.290
Pulley Belt Width (mm) 7.20
Unit System Metric
Belt Width (mm) 7.20
P.D. (mm) 25.50
O.D. (mm) 25.00
Flange Diameter (mm) 30.70
Face Width (mm) 10.30
Overall Length (mm) 18.30
Hub Diameter (mm) 19.20
MOQ 1
Part Number Cross Reference 6A51M040DF0606, 40-2P06M6FA6, 40-2P06M6FA6
Set Screw Quantity 2
