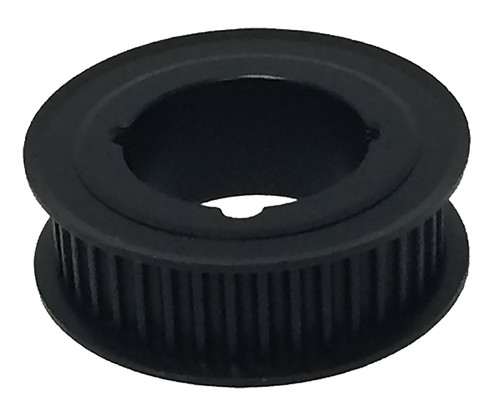

38-5P15-1108, Timing Pulley

38-5P15-1108

Click to Enlarge

38-5P15-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 38-5P15-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	38-5P15-1108
Teeth	38
Tooth Style	5P
For Belt Width (mm)	15.00
Type	A1F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1108 Bushing
Pitch Diameter (in)	2.381
Outside Diameter (in)	2.336
Flange Diameter (in)	2.625
Face Width (in)	0.880
Overall Length (in)	0.880
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.710
Unit System	Inch
Bushing	1108
P.D. (mm)	60.00
O.D. (mm)	59.30
MOQ	1
Weight (lb)	0.64
Part Number Cross Reference	P38-5MGT-15, P38-5M-15-1108 HT250 SPKT, 38-5P15-1108, 112468, 38-5P15-1108
