37T48P20-6P2, Gear

37T48P20-6P2

37T48P20-6P2

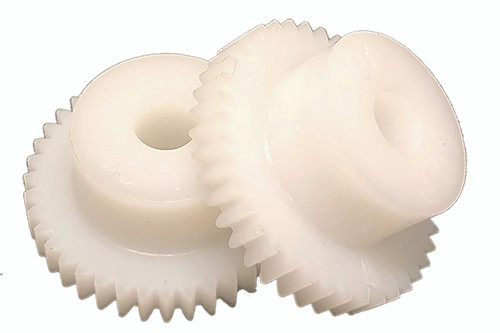

37T48P20-6P2, Gear, Plastic

B&B Manufacturing carries 37T48P20-6P2 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	37T48P20-6P2
Teeth	37
Tooth Style	48
Material	Acetal
Bore (in)	0.188
Bore Description	3/16 Inch Bore
Pitch Diameter (in)	0.771
Outside Diameter (in)	0.813
Face Width (in)	0.125
Overall Length (in)	0.375
Hub Diameter (in)	0.547
Unit System	Inch
MOQ	1
Weight (lb)	0.01
Part Number Cross Reference	37T48P20-6P2, 37T48P20-6P2
Pressure Angle	20.0
Diametral Pitch	48
