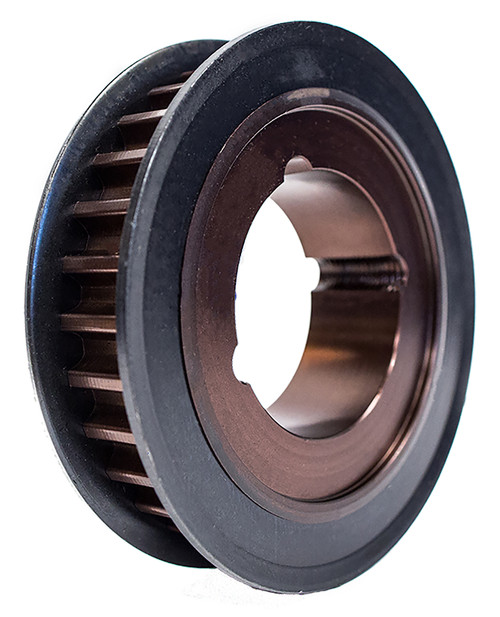

36-14MX20-2517, Timing Pulley

36-14MX20-2517

Click to Enlarge

36-14MX20-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 36-14MX20-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	36-14MX20-2517
Teeth	36
Tooth Style	14MX
For Belt Width (mm)	20.00
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2517 Bushing
Pitch Diameter (in)	6.316
Outside Diameter (in)	6.206
Flange Diameter (in)	6.816
Face Width (in)	1.359
Overall Length (in)	1.750
Min. Bore (in)	0.5
Pulley Belt Width (in)	1.040
Unit System	Inch
Bushing	2517
P.D. (mm)	160.00
O.D. (mm)	157.60
MOQ	1
Weight (lb)	7.95
Part Number Cross Reference	14MX-36S-20, 14MX36S20-2517, B14MCS-36-20, 36G-14M-20-2517, 20296113, 14MX-36S-20-2517 HT500 SPKT, 14MPC36S20, 14MX36S20-2517, 36-14MX20-2517, 482025, 36-14MX20-2517
