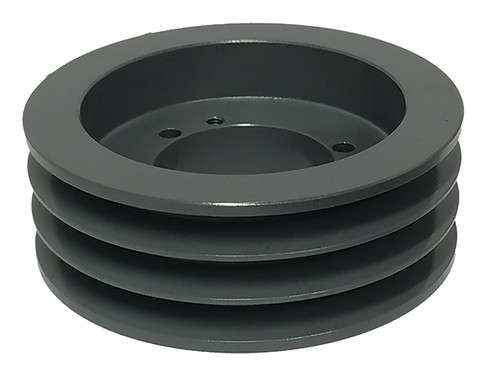

35V975SF, V-Belt Pulley

35V975SF

35V975SF, V-Belt Pulley, Cast Iron

Learn more about 35V975SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	35V975SF
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	9.650
Outside Diameter (in)	9.750
Face Width (in)	2.375
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	22.60
Part Number Cross Reference	QD3/5V9.75, 35V975SF, 5V9.75-3-SF, 20180916, 3-5V9.75-SF SHEAVE, 5V9753, 3-5V9.75, 35V975SF, 455282, 35V975SF
Grooves	3
