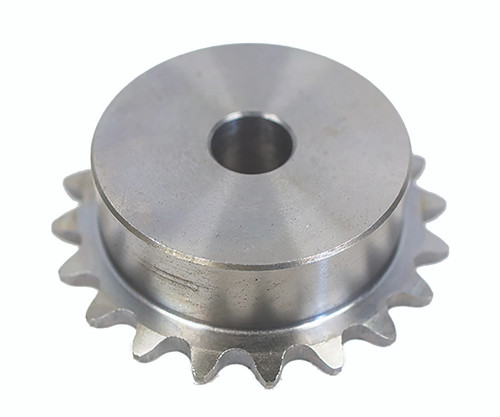

35B15SS, Roller Chain Sprocket

35B15SS

35B15SS

35B15SS, Roller Chain Sprocket, Stainless Steel

B&B Manufacturing carries 35B15SS to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	35B15SS
Teeth	15
Tooth Style	35
Type	B
Material	Stainless Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.875
Bore Description	7/8 Inch Minimum Plain Bore
Outside Diameter (in)	1.990
Face Width (in)	0.750
Overall Length (in)	0.500
Hub Diameter (in)	1.344
Unit System	Inch
MOQ	1
Weight (lb)	0.29
Part Number Cross Reference	35B15SS, 35B15SS, 35B15SS

Comparable to: 35B15SS, 35B15SS, 35B15SS
