34MP025-SFM3, Timing Pulley

34MP025-SFM3

34MP025-SFM3

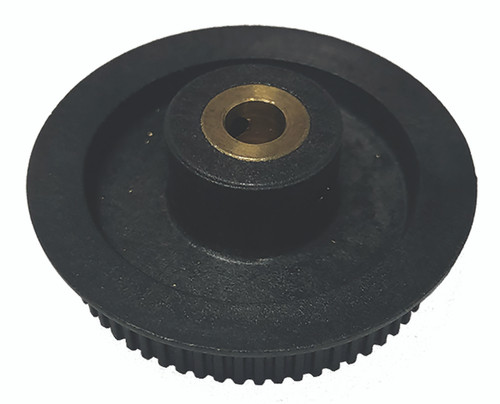

34MP025-SFM3, Timing Pulley

B&B Manufacturing carries 34MP025-SFM3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 34MP025-SFM3
Teeth 34
Tooth Style MXL
For Belt Width (in) 0.2500
Type SFM
Material Polycarbonate
Flange Material Polycarbonate
Bore (in) 0.250
Bore Description 1/4 Inch Bore
Pitch Diameter (in) 0.866
Outside Diameter (in) 0.846
Flange Diameter (in) 1.040
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Inch
P.D. (mm) 22.00
O.D. (mm) 21.50
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 34MP025-SFM3, 34MP025-SFM3
Set Screw Quantity 1
Insert Material Aluminum
