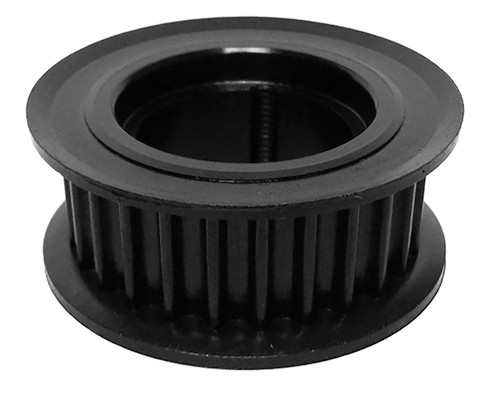

33-8P20-1210, Timing Pulley

33-8P20-1210 - Cast Iron Powerhouse® Pulleys

33-8P20-1210

33-8P20-1210 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

33-8P20-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 33-8P20-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 33-8P20-1210
Teeth 33
Tooth Style 8P
For Belt Width (mm) 20.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1210 Bushing
Pitch Diameter (in) 3.308
Outside Diameter (in) 3.254
Flange Diameter (in) 3.735
Face Width (in) 1.130
Overall Length (in) 1.130
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 1210
P.D. (mm) 84.00
O.D. (mm) 82.70
MOQ 1
Weight (lb) 1.60
Part Number Cross Reference P33-8MGT-20, B338M20TL, P33-8M-20-1210, 21060836, 33-8P20-1210, 33-8P20-1210
