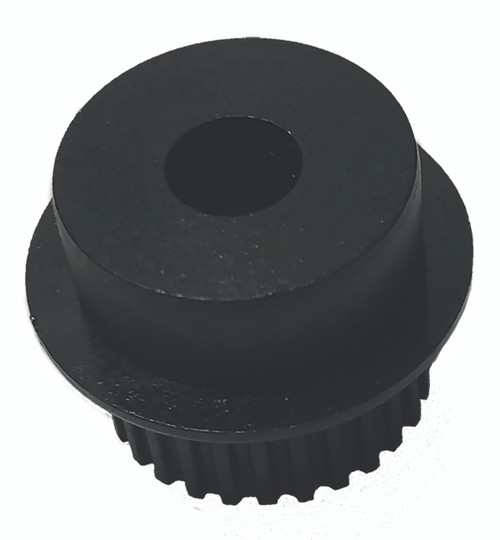

32MP025MSFP8, Timing Pulley

32MP025MSFP8

32MP025MSFP8

32MP025MSFP8, Timing Pulley

B&B Manufacturing carries 32MP025MSFP8 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	32MP025MSFP8
Teeth	32
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	SFP
Material	Polycarbonate
Flange Material	Polycarbonate
Bore Description	8 mm Bore
Bore (mm)	8.00
Pitch Diameter (in)	0.815
Outside Diameter (in)	0.795
Flange Diameter (in)	0.980
Face Width (in)	0.433
Overall Length (in)	0.688
Hub Diameter (in)	0.688
Unit System	Metric
P.D. (mm)	21.00
O.D. (mm)	20.20
Flange Diameter (mm)	24.89
Overall Length (mm)	17.46
MOQ	1
Weight (lb)	0.01
Part Number Cross Reference	32MP025MSFP8, 32MP025MSFP8

Comparable to: 32MP025MSFP8, 32MP025MSFP8
