32-3M06M6FA6, Timing Pulley

32-3M06M6FA6 - Aluminum Powerhouse®HTD® Pulleys

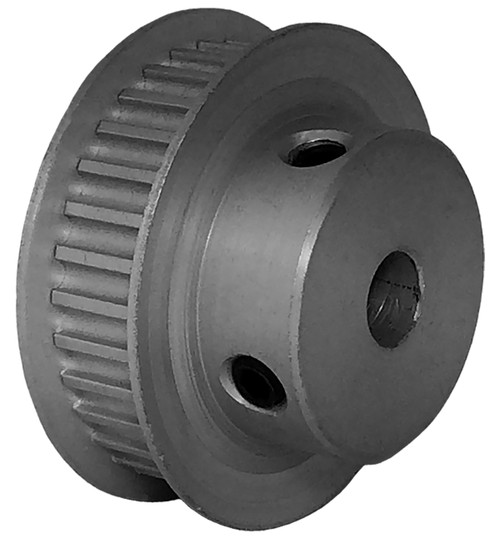

32-3M06M6FA6

32-3M06M6FA6 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

32-3M06M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 32-3M06M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 32-3M06M6FA6
Teeth 32
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.203
Outside Diameter (in) 1.173
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 31.00
O.D. (mm) 29.80
Flange Diameter (mm) 33.60
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 21.60
MOQ 1
Weight (lb) 0.05
Part Number Cross Reference A 6A23M032DF0606, A6A23M032DF0606, 32-3M06M6FA6, 32-3M06M6FA6
Set Screw Quantity 2
