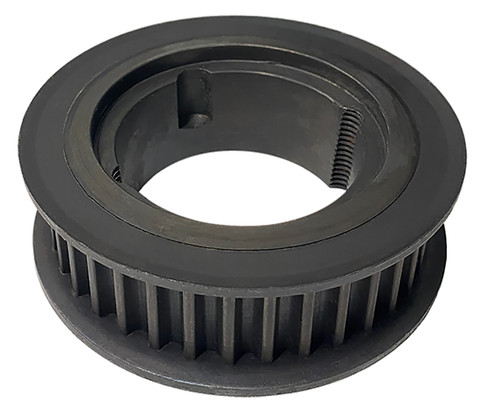

31-8MX21-1210, Timing Pulley

31-8MX21-1210

Click to Enlarge

31-8MX21-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 31-8MX21-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	31-8MX21-1210
Teeth	31
Tooth Style	8MX
For Belt Width (mm)	21.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1210 Bushing
Pitch Diameter (in)	3.108
Outside Diameter (in)	3.045
Flange Diameter (in)	3.543
Face Width (in)	1.203
Overall Length (in)	1.203
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.960
Unit System	Inch
Bushing	1210
P.D. (mm)	79.00
O.D. (mm)	77.30
MOQ	1
Weight (lb)	1.42
Part Number Cross Reference	8MX-31S-21, B8MCS-31-21, 31G-8M-21-1210, 20839711, 8MX-31S-21-1210 HT500 SPKT, 8MPC31S21, 31-8MX21-1210, 481922, 31-8MX21-1210
