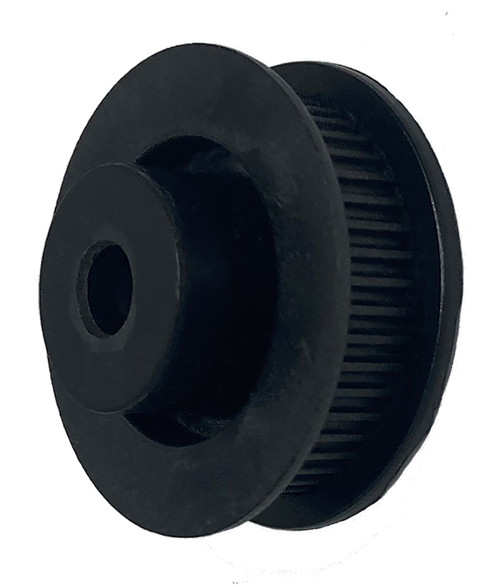

30-2P06MDFP8, Timing Pulley

30-2P06MDFP8

30-2P06MDFP8

30-2P06MDFP8, Timing Pulley

B&B Manufacturing carries 30-2P06MDFP8 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 30-2P06MDFP8
Teeth 30
Tooth Style 2P
For Belt Width (mm) 6.00
Type DFP
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 8 mm Bore
Bore (mm) 8.00
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.732
Flange Diameter (in) 0.930
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Metric
P.D. (mm) 19.00
O.D. (mm) 18.60
Flange Diameter (mm) 23.62
Overall Length (mm) 17.48
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference 30-2P06MDFP8, 30-2P06MDFP8
Set Screw Quantity 1
