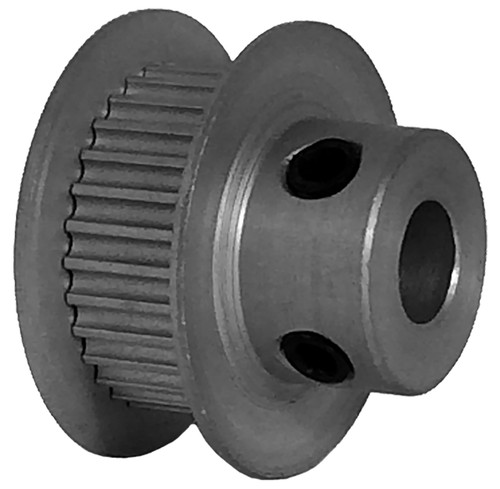

30-2P06M6FA6, Timing Pulley

30-2P06M6FA6

30-2P06M6FA6

30-2P06M6FA6 Line Drawing

Click to Enlarge

30-2P06M6FA6, Timing Pulley

B&B Manufacturing carries 30-2P06M6FA6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 30-2P06M6FA6
Teeth 30
Tooth Style 2P
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6.000
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.732
Flange Diameter (in) 0.945
Face Width (in) 0.389
Overall Length (in) 0.687
Hub Diameter (in) 0.546
Pulley Belt Width (in) 0.290
Pulley Belt Width (mm) 7.20
Unit System Metric
Belt Width (mm) 7.20
P.D. (mm) 19.10
O.D. (mm) 18.60
Flange Diameter (mm) 24.00
Face Width (mm) 9.90
Overall Length (mm) 17.50
Hub Diameter (mm) 13.90
MOQ 1
Part Number Cross Reference 6A51M030DF0606, 30-2P06M6FA6, 30-2P06M6FA6
Set Screw Quantity 2
