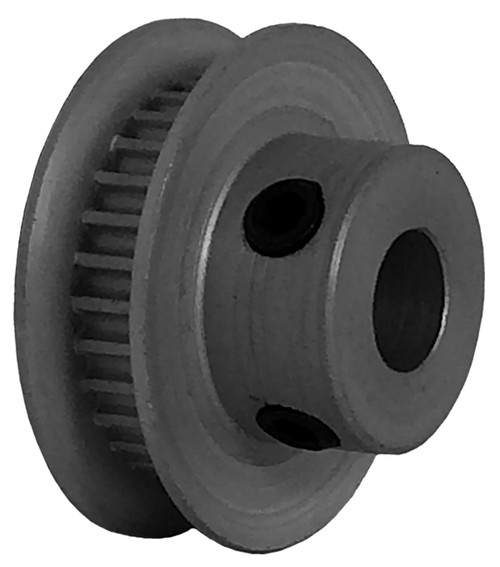

30-2P03-6FA3, Timing Pulley

30-2P03-6FA3 - Aluminum Powerhouse® Pulleys

30-2P03-6FA3

Click to Enlarge

30-2P03-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 30-2P03-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 30-2P03-6FA3
Teeth 30
Tooth Style 2P
For Belt Width (mm) 3.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.752
Outside Diameter (in) 0.732
Flange Diameter (in) 0.945
Face Width (in) 0.260
Overall Length (in) 0.516
Hub Diameter (in) 0.546
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.160
Unit System Inch
P.D. (mm) 19.00
O.D. (mm) 18.60
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A51-030DF0308, A6A51-030DF0308, 30-2GT06-1A X 1/4, 30-2P03-6FA3, 30-2P03-6FA3
Set Screw Quantity 2
