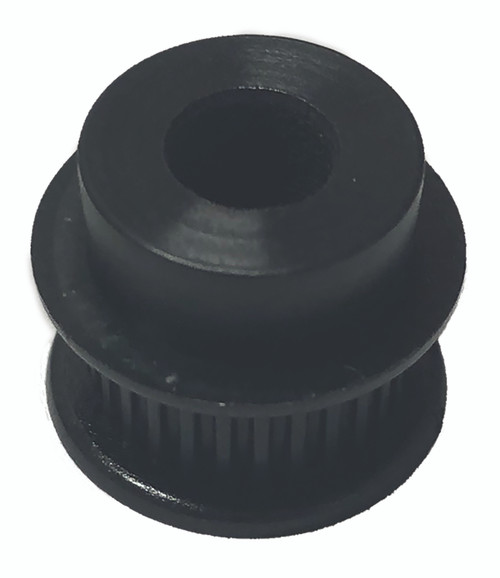

28MP025MDFP8, Timing Pulley

28MP025MDFP8

28MP025MDFP8

28MP025MDFP8, Timing Pulley

B&B Manufacturing carries 28MP025MDFP8 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 28MP025MDFP8
Teeth 28
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFP
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 8 mm Bore
Bore (mm) 8.00
Pitch Diameter (in) 0.713
Outside Diameter (in) 0.693
Flange Diameter (in) 0.880
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Metric
P.D. (mm) 18.00
O.D. (mm) 17.60
Flange Diameter (mm) 22.35
Overall Length (mm) 17.46
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference 28MP025MDFP8, 28MP025MDFP8
