28MP025M3FP8, Timing Pulley

28MP025M3FP8

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

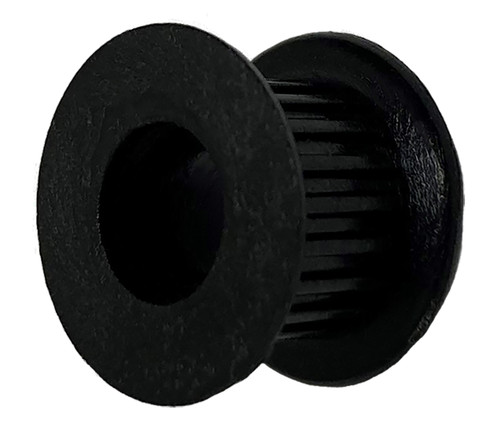

28MP025M3FP8, Timing Pulley

B&B Manufacturing carries 28MP025M3FP8 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	28MP025M3FP8
Teeth	28
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	3F
Material	Polycarbonate
Flange Material	Polycarbonate
Bore Description	8 mm Bore
Bore (mm)	8.00
Pitch Diameter (in)	0.713
Outside Diameter (in)	0.693
Flange Diameter (in)	0.880
Face Width (in)	0.433
Overall Length (in)	0.433
Hub Diameter (in)	0.344
Unit System	Metric
P.D. (mm)	18.00
O.D. (mm)	17.60
Flange Diameter (mm)	22.35
Face Width (mm)	11.00
Overall Length (mm)	11.00
MOQ	1
Weight (lb)	0.01
Part Number Cross Reference	28MP025M3FP8, 28MP025M3FP8

Comparable to: 28MP025M3FP8, 28MP025M3FP8
