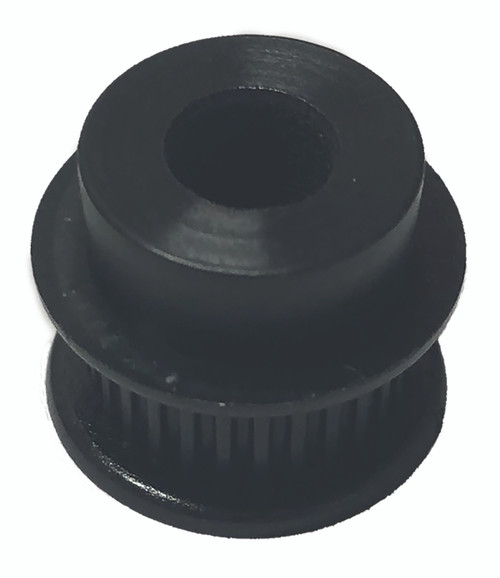

28MP025-DFP3, Timing Pulley

28MP025-DFP3

28MP025-DFP3

28MP025-DFP3, Timing Pulley, Plastic

B&B Manufacturing carries 28MP025-DFP3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 28MP025-DFP3
Teeth 28
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFP
Material Polycarbonate
Flange Material Polycarbonate
Bore Type Minimum Plain Bore
Bore (in) 0.250
Bore Description 1/4 Inch Bore
Pitch Diameter (in) 0.713
Outside Diameter (in) 0.693
Flange Diameter (in) 0.880
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Inch
P.D. (mm) 18.00
O.D. (mm) 17.60
Flange Diameter (mm) 22.35
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference 28MXL025-LDF, 28MP025-DFP3, 28MP025-DFP3
