28-8P30-1108, Timing Pulley

28-8P30-1108 - Steel Powerhouse® Pulleys

28-8P30-1108

28-8P30-1108 - Steel Powerhouse® Pulleys Line Drawing

Click to Enlarge

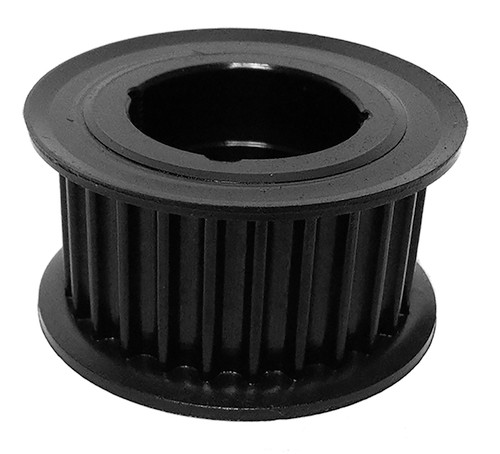

28-8P30-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 28-8P30-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-8P30-1108
Teeth 28
Tooth Style 8P
For Belt Width (mm) 30.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.807
Outside Diameter (in) 2.753
Flange Diameter (in) 3.150
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 1108
P.D. (mm) 71.00
O.D. (mm) 69.90
MOQ 1
Weight (lb) 1.65
Part Number Cross Reference P28-8MGT-30, B288M30TL, P28-8M-30-1108, 20182764, P28-8M-30-1108 HT250 SPKT, P288M30TL, 28-8P30-1108, 112870, 28-8P30-1108
