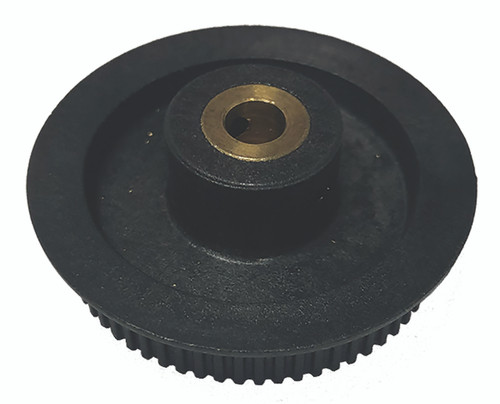

26MP025MSFM5, Timing Pulley

26MP025MSFM5

26MP025MSFM5

26MP025MSFM5, Timing Pulley

B&B Manufacturing carries 26MP025MSFM5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 26MP025MSFM5
Teeth 26
Tooth Style MXL
For Belt Width (in) 0.2500
Type SFM
Material Polycarbonate
Flange Material Polycarbonate
Bore Description 5 mm Bore
Bore (mm) 5.00
Pitch Diameter (in) 0.662
Outside Diameter (in) 0.642
Flange Diameter (in) 0.830
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.563
Unit System Metric
P.D. (mm) 17.00
O.D. (mm) 16.30
Flange Diameter (mm) 21.08
Overall Length (mm) 17.46
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 26MP025MSFM5, 26MP025MSFM5
Set Screw Quantity 1
Insert Material Aluminum
