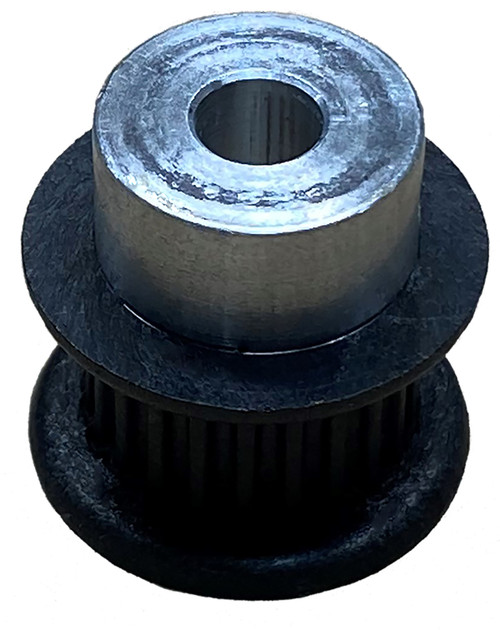

26MP025-DFM2, Timing Pulley

26MP025-DFM2

26MP025-DFM2

26MP025-DFM2, Timing Pulley

B&B Manufacturing carries 26MP025-DFM2 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 26MP025-DFM2
Teeth 26
Tooth Style MXL
For Belt Width (in) 0.2500
Type DFM
Material Polycarbonate
Flange Material Polycarbonate
Bore (in) 0.188
Bore Description 3/16 Inch Bore
Pitch Diameter (in) 0.662
Outside Diameter (in) 0.642
Flange Diameter (in) 0.830
Face Width (in) 0.433
Overall Length (in) 0.688
Hub Diameter (in) 0.688
Unit System Inch
P.D. (mm) 17.00
O.D. (mm) 16.30
Flange Diameter (mm) 21.08
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 26MP025-DFM2, 26MP025-DFM2
Set Screw Quantity 1
Insert Material Aluminum
