26L050M6FA14, Timing Pulley

26L050M6FA14

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

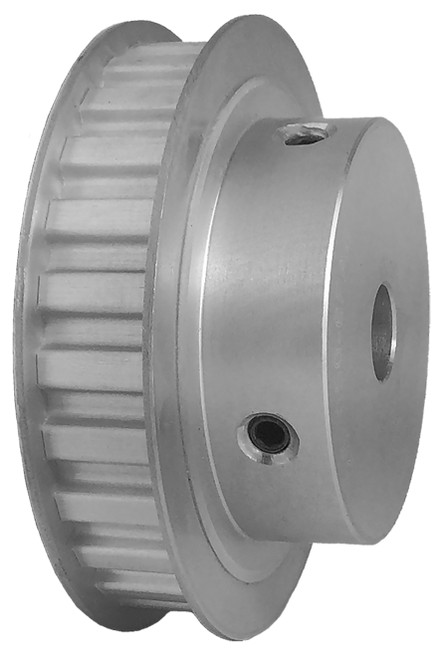

26L050M6FA14, Timing Pulley

B&B Manufacturing carries 26L050M6FA14 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	26L050M6FA14
Teeth	26
Tooth Style	L
For Belt Width (in)	0.5000
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	14 mm Finished Bore
Bore (mm)	14.00
Pitch Diameter (in)	3.104
Outside Diameter (in)	3.074
Unit System	Metric
P.D. (mm)	79.00
O.D. (mm)	78.10
MOQ	1
Weight (lb)	0.81
Part Number Cross Reference	26L050M6FA14, 26L050M6FA14

Comparable to: 26L050M6FA14, 26L050M6FA14
