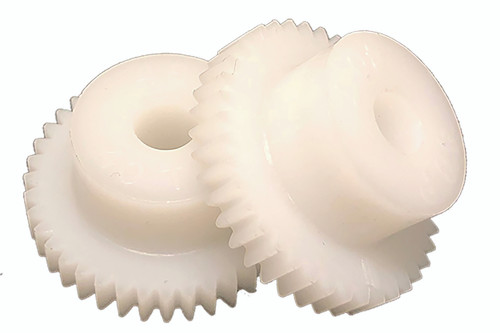

25T20P20-6P5, Gear

25T20P20-6P5

25T20P20-6P5

25T20P20-6P5, Gear

B&B Manufacturing carries 25T20P20-6P5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	25T20P20-6P5
Teeth	25
Tooth Style	20
Material	Acetal
Bore (in)	0.375
Bore Description	3/8 Inch Bore
Pitch Diameter (in)	1.250
Outside Diameter (in)	1.350
Face Width (in)	0.375
Overall Length (in)	0.750
Hub Diameter (in)	0.734
Unit System	Inch
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	25T20P20-6P5, 25T20P20-6P5
Pressure Angle	20.0
Diametral Pitch	20
