25T20P20-6P3, Gear

25T20P20-6P3

25T20P20-6P3

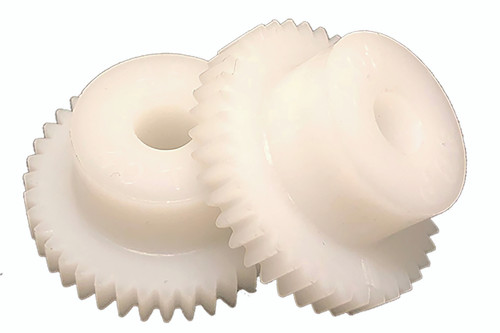

25T20P20-6P3, Gear, Plastic

B&B Manufacturing carries 25T20P20-6P3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	25T20P20-6P3
Teeth	25
Tooth Style	20
Material	Acetal
Bore (in)	0.250
Bore Description	1/4 Inch Bore
Pitch Diameter (in)	1.250
Outside Diameter (in)	1.350
Face Width (in)	0.375
Overall Length (in)	0.750
Hub Diameter (in)	0.734
Unit System	Inch
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	25T20P20-6P3, 25T20P20-6P3
Pressure Angle	20.0
Diametral Pitch	20

Related Products

Comparable to: 25T20P20-6P3, 25T20P20-6P3
